Macchine di misura a coordinate ottiche
Ottica di alta precisione per compiti di misura flessibili
Misura senza contatto con opzioni a contatto
Le macchine di misura a coordinate ottiche (VMM) della ZEISS Optical Series convincono per i loro sistemi di telecamere ad alta risoluzione, l’illuminazione variabile e il software sofisticato per risultati di misura rapidi e precisi. La tecnologia di misura ottica senza contatto consente di misurare con un elevato grado di precisione anche componenti particolarmente sensibili, a parete sottile o piatti, come ottiche, pezzi stampati a iniezione, lamine, pezzi punzonati e piegati. Per ampliare la gamma di applicazioni, i sistemi della ZEISS Optical Series possono essere integrati con sistemi tastatori aggiuntivi, per ottenere misure ottiche e a contatto di alta precisione con una sola CMM.

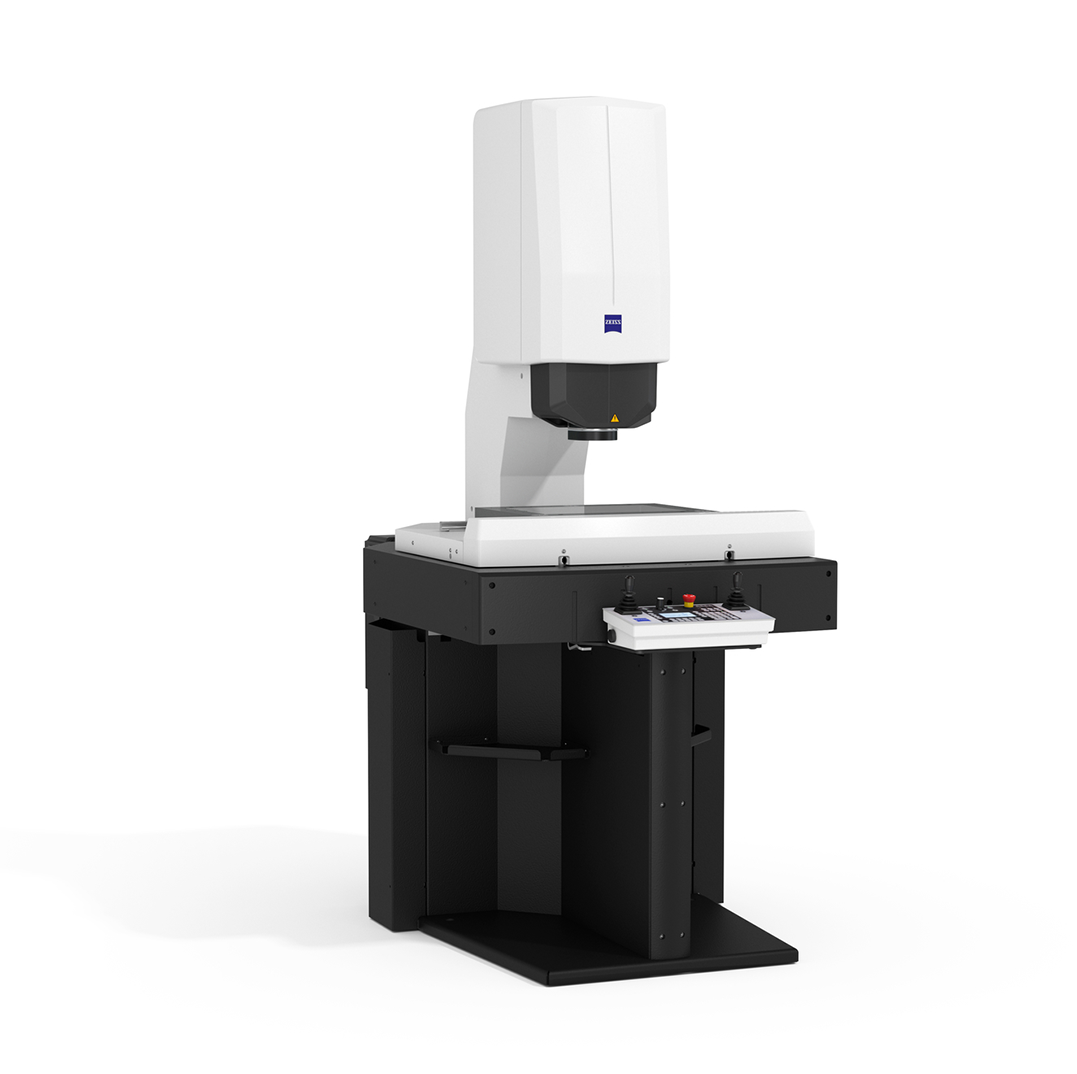

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")

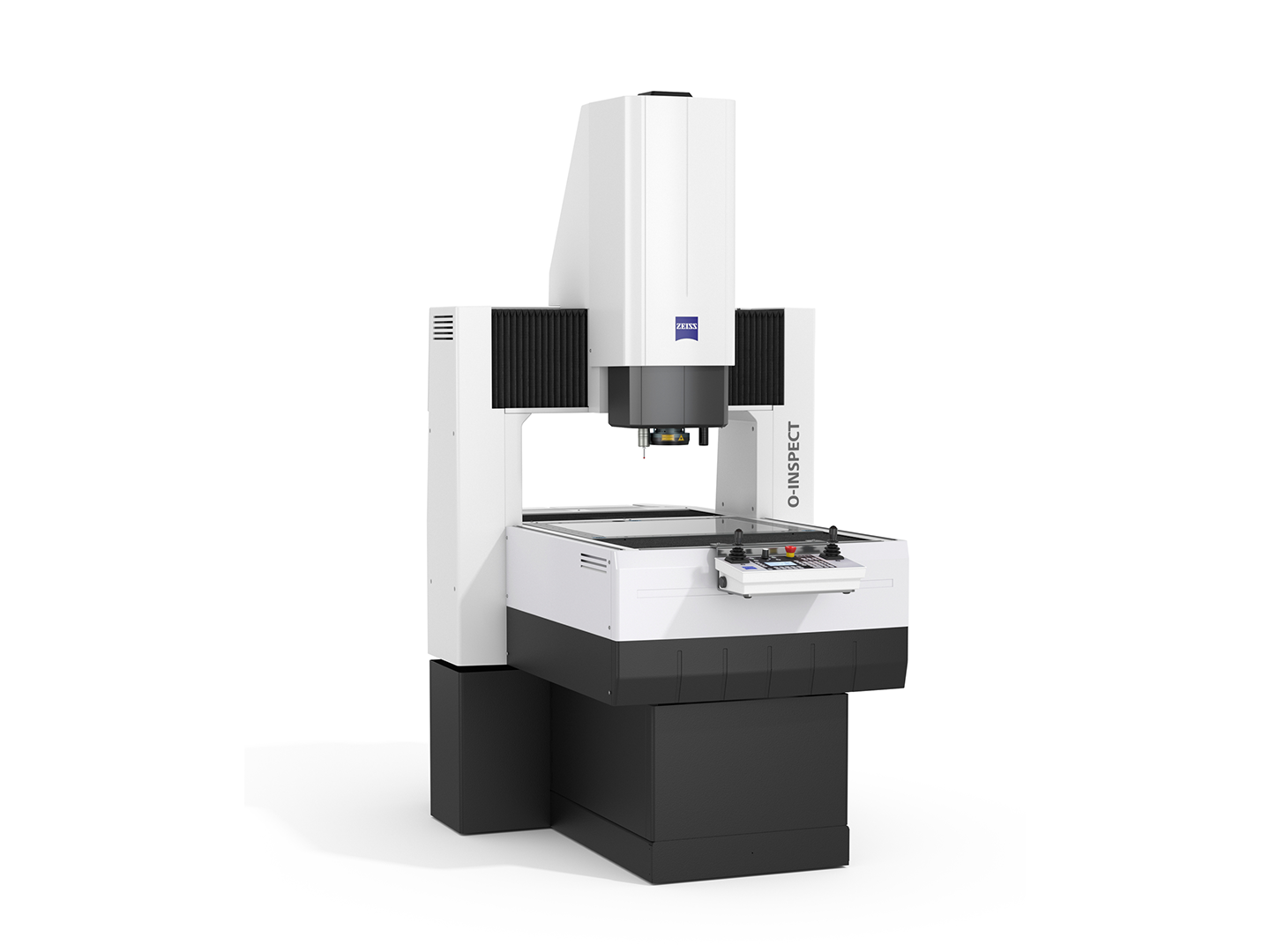

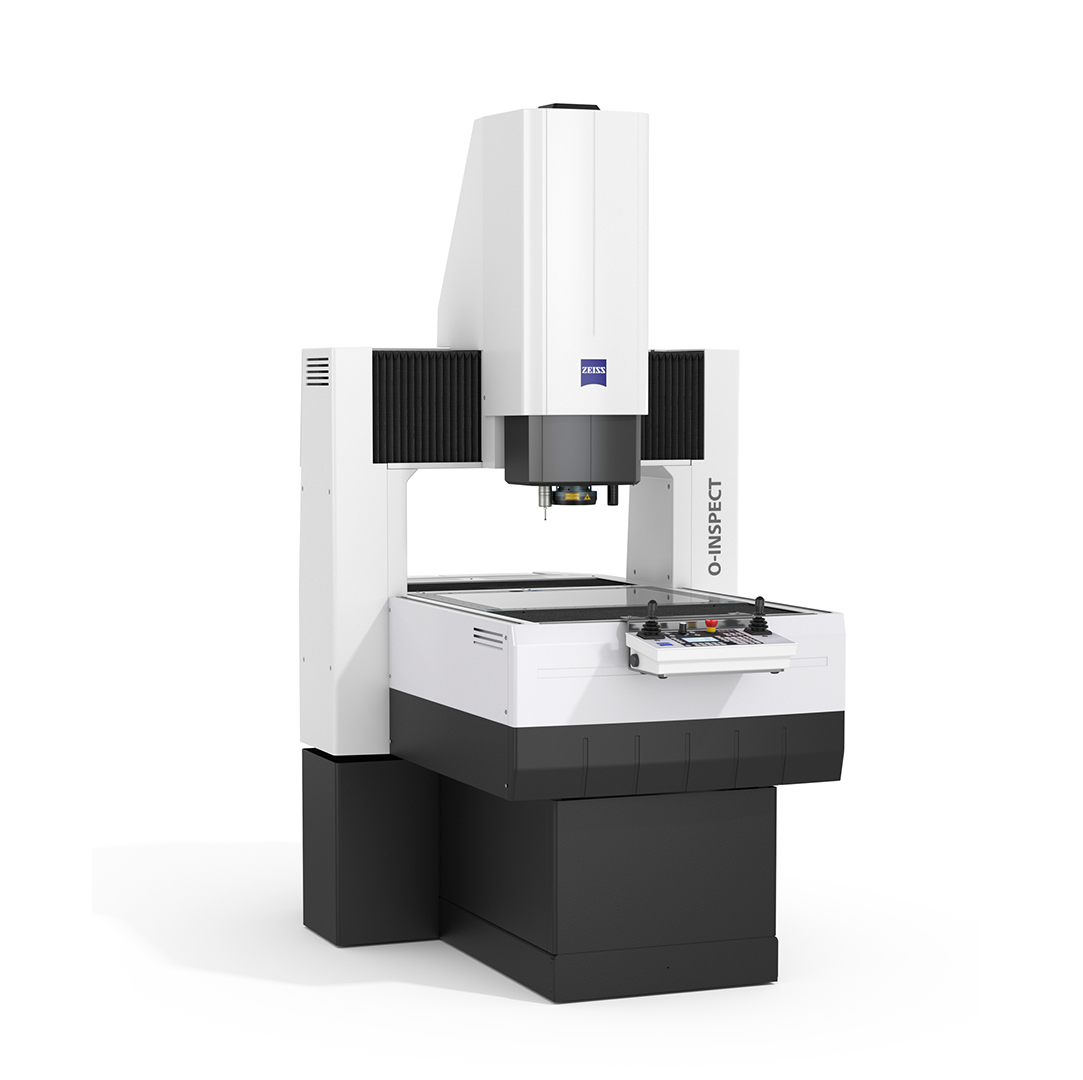

![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")

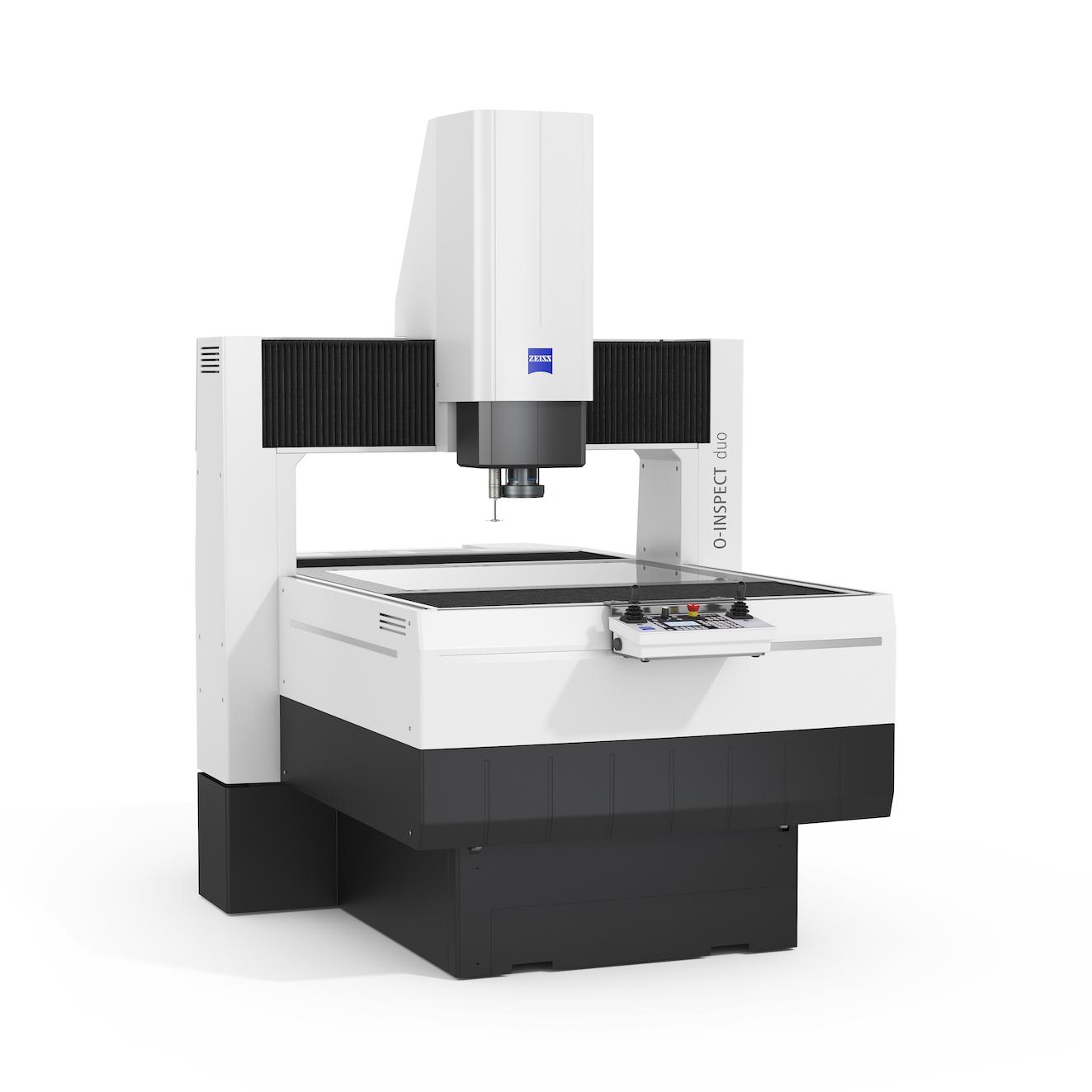

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.960.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original./zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
![Tecnologia multisensore]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.100.75.0,221,1280,1181.file/multisensor.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.360.270.0,221,1280,1181.file/multisensor.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.768.576.0,221,1280,1181.file/multisensor.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1024.768.0,221,1280,1181.file/multisensor.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg"} "Tecnologia multisensore")
Tecnologia multisensore
Metrologia ottica e a contatto combinata

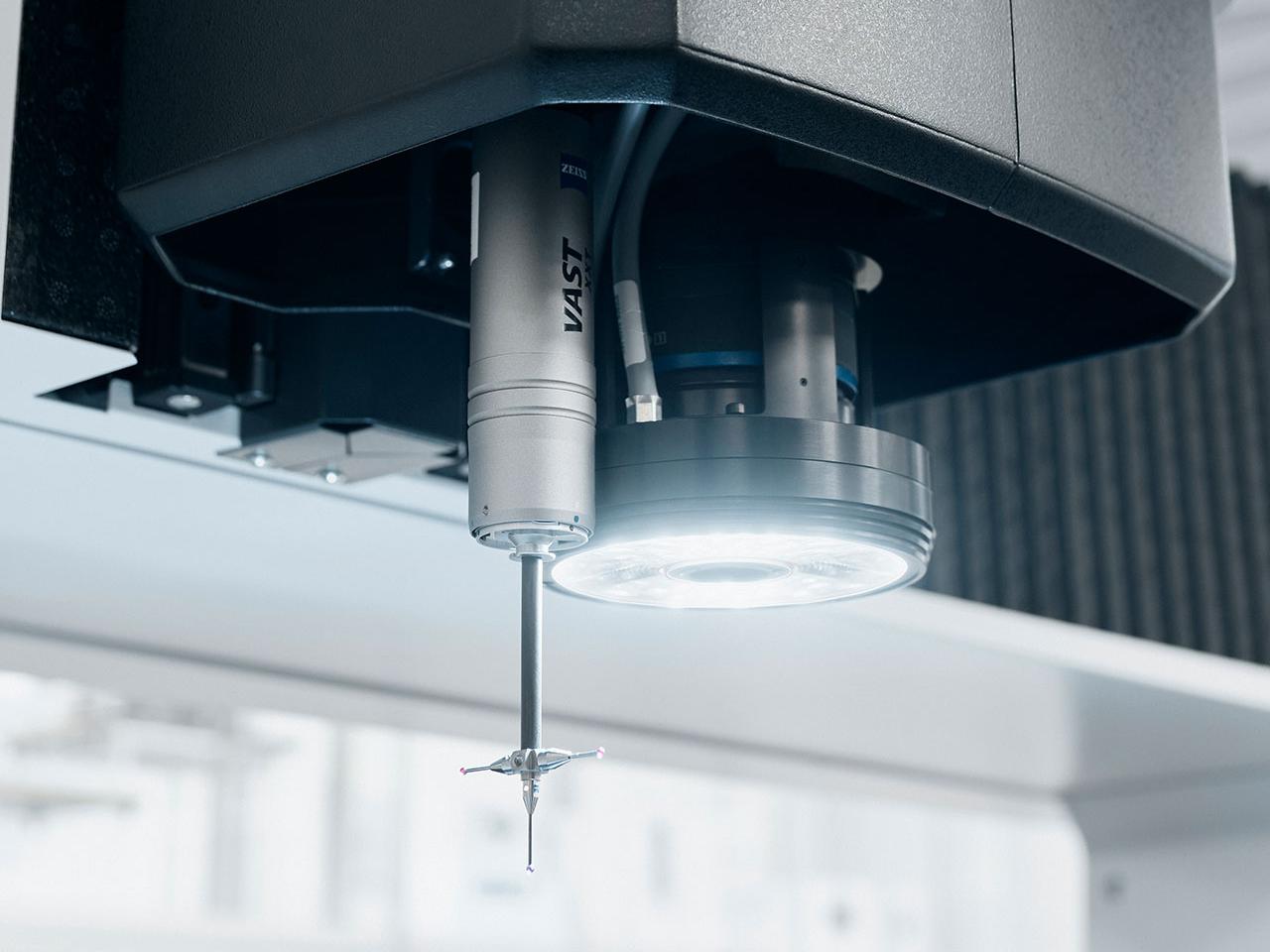

Tutti i prodotti della Optical Series sono compatibili con un sensore a contatto e consentono quindi di acquisire dati di misurazione a contatto 3D oltre a misure ottiche 2D di alta precisione. A seconda del modello, la testa sonda a contatto è disponibile come opzione o inclusa nel pacchetto standard.
![Dimensioni diverse per esigenze diverse]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.100.56.0,280,1280,1000.file/groessen.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.360.203.0,280,1280,1000.file/groessen.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.768.432.0,280,1280,1000.file/groessen.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1024.576.0,280,1280,1000.file/groessen.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg"} "Dimensioni diverse per esigenze diverse")
Varietà di dimensioni
Dimensioni diverse per esigenze diverse

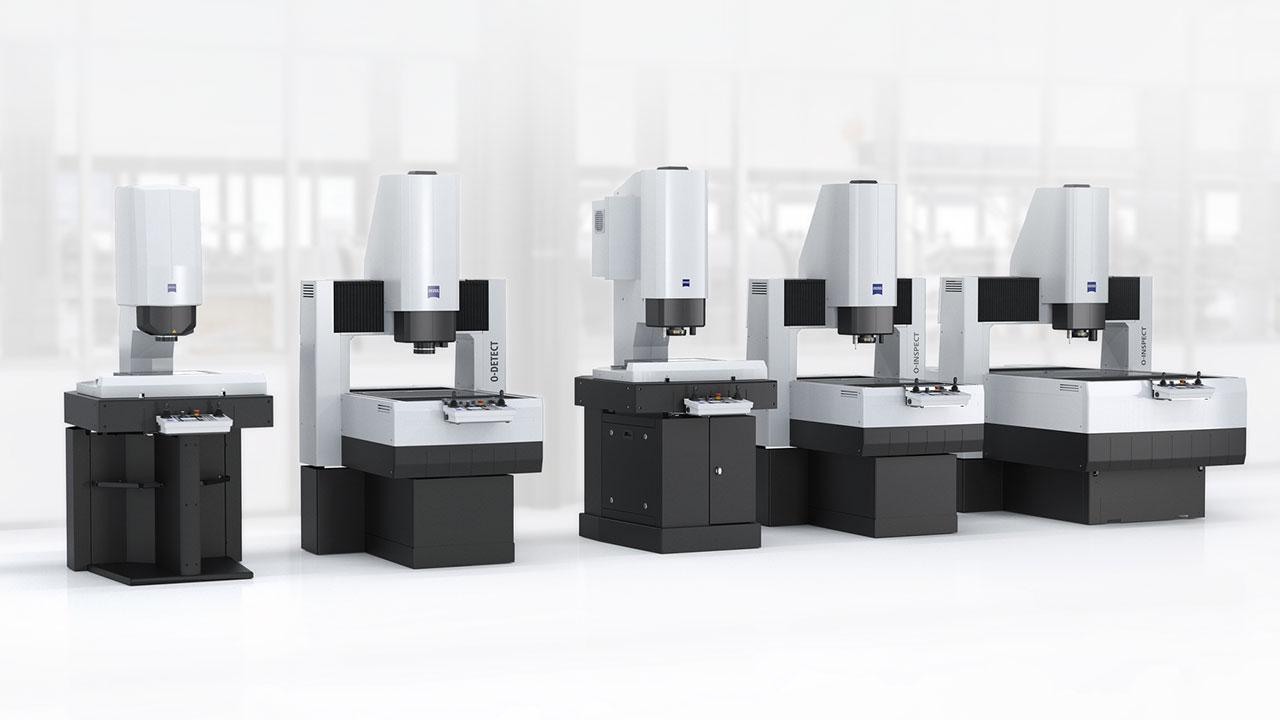

ZEISS O-DETECT e ZEISS O-INSPECT sono disponibili in diverse dimensioni e sono adatti a un’ampia gamma di applicazioni, dai componenti piccoli e delicati a quelli più grandi.
Confronto tecnico

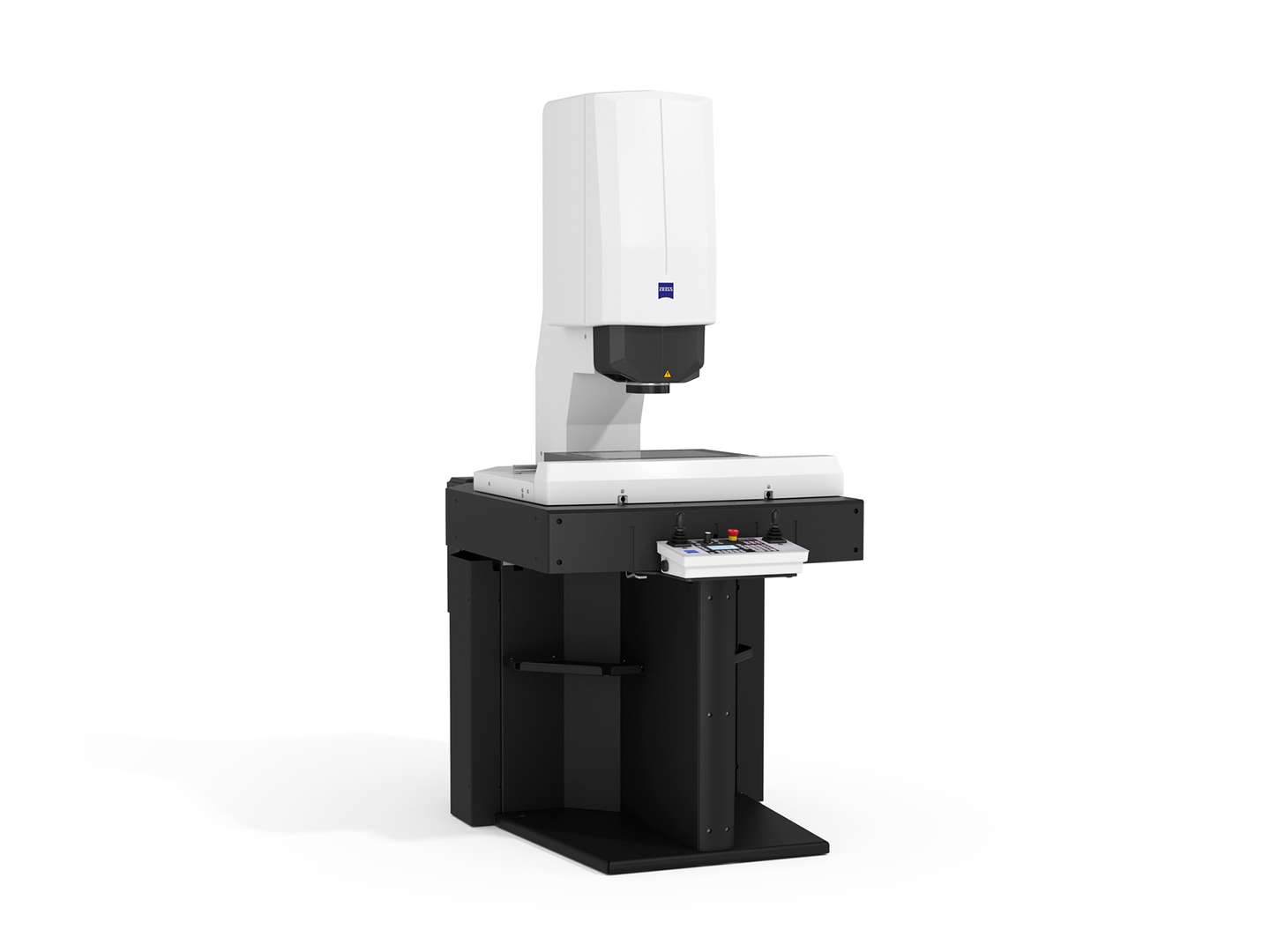

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.100.142,6,1219,1083.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.360.142,6,1219,1083.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.768.142,6,1219,1083.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")
|
![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.100.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.360.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.768.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")
|

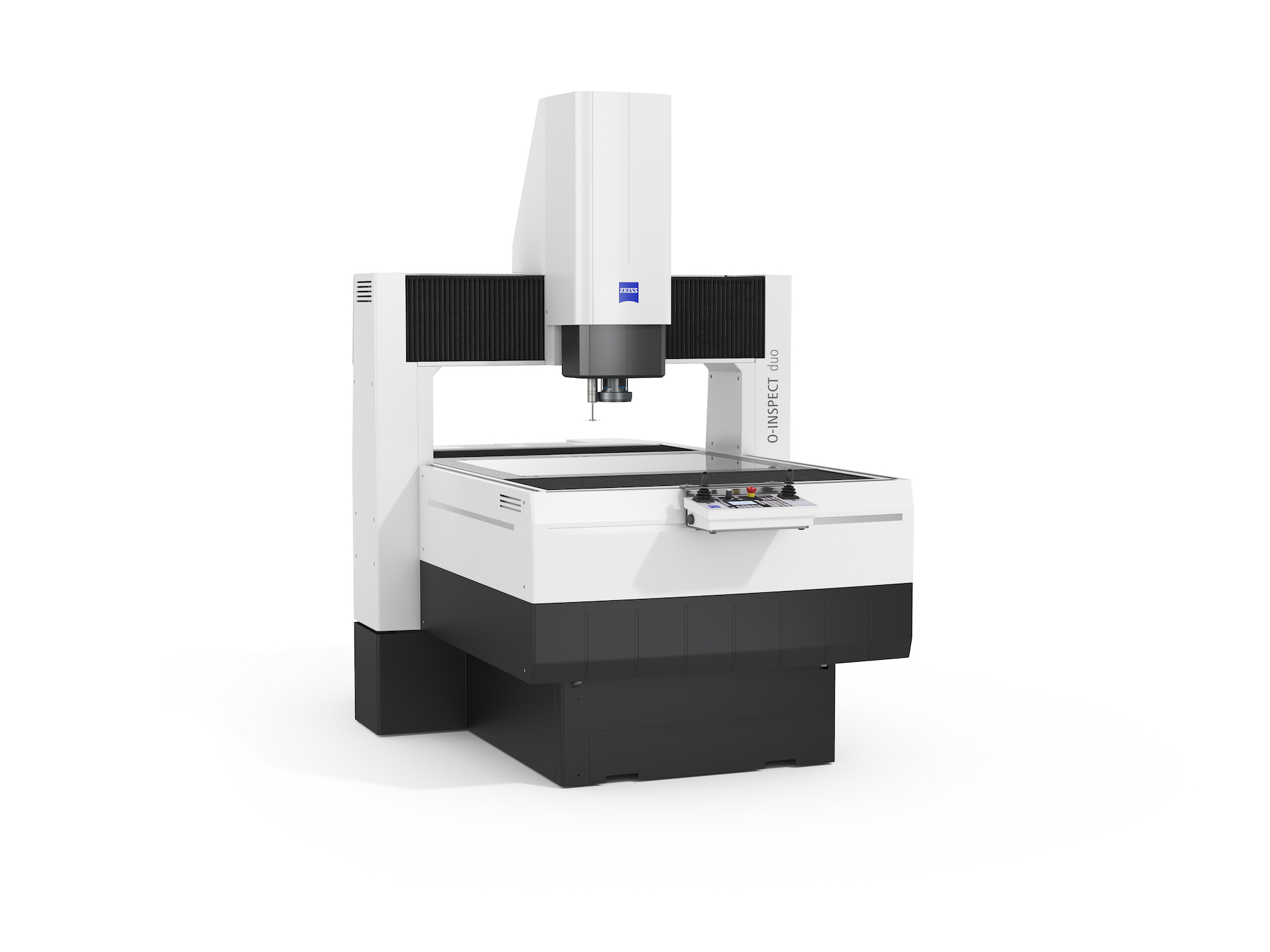

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.100.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.360.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.768.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.1024.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.1280.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
|
|
|---|---|---|---|
|
Tipo di prodotto |
Macchina di misura a coordinate |
Macchina di misura a coordinate |
Microscopio e macchina di misura a coordinate |
|
Campo di misura in dm |
3/2/2; 5/4/3 |
3/2/2; 5/4/3; 8/6/3 |
8/6/3 |
|
Sonda ottica |
ZEISS INVENTA D1 |
ZEISS Discovery.V12 |
ZEISS Discovery.V12 |
|
Telecamera |
5 MP bianco/nero |
Standard 100 o scout 160 o scout 240 |
Scout 160 c |
|
Ingrandimento ottico |
1.0x |
Fino a 12x |
Fino a 12x |
|
Altre sonde |
ZEISS XDT (opzionale) |
ZEISS VAST XXT |
ZEISS VAST XXT |
|
Panoramica della telecamera |
Sì |
No |
No |
|
Illuminazione |
luce ad anello a LED a 8 segmenti con LED blu e bianchi, luce incidente coassiale e retroilluminazione, luce anulare diffusa (opzionale) |
luce ad anello a LED a 8 segmenti con LED rossi e blu, luce incidente coassiale e retroilluminazione |
luce ad anello a 16 segmenti LED con LED bianchi, luce incidente coassiale e retroilluminazione |
|
Precisione da |
1D: 1,6 μm + L/200 μm |
1D: 1,4 μm + L/250 μm |
1D: 1,5 µm + L/250 µm (8/6/3) |
|
Software |
ZEISS CALYPSO |
ZEISS CALYPSO |
ZEISS CALYPSO |
