ATOS Q
Scanner 3D per la misurazione di oggetti con geometrie complesse da piccole a medie dimensioni in modalità manuale, semiautomatica o automatizzata.
![]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.100.33.300,396,1919,936.file/atos-q_2.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.360.120.300,396,1919,936.file/atos-q_2.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.768.256.300,396,1919,936.file/atos-q_2.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1024.341.300,396,1919,936.file/atos-q_2.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1280.427.300,396,1919,936.file/atos-q_2.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1440.480.300,396,1919,936.file/atos-q_2.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1619.540.300,396,1919,936.file/atos-q_2.jpg"})
ATOS Q
Controllo qualità di
Controllo qualità di
parti in lamiera
Sfide
Insieme all’aumento dei requisiti per la funzionalità e la sicurezza, cresce continuamente anche la richiesta di componenti in lamiera di alta qualità. Inoltre, la capacità di sviluppare e lanciare prodotti in tempi più brevi è considerata un vantaggio competitivo. Pertanto, un sistema di misurazione rapido ed efficiente che controlli le forme e la qualità dei prodotti è estremamente necessario.
![]({"xsmall":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.100.50.0,203,1920,1163.file/tuerschloss2.jpg","small":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.360.180.0,203,1920,1163.file/tuerschloss2.jpg","medium":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.768.384.0,203,1920,1163.file/tuerschloss2.jpg","large":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1024.512.0,203,1920,1163.file/tuerschloss2.jpg","xlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1280.640.0,203,1920,1163.file/tuerschloss2.jpg","xxlarge":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1440.720.0,203,1920,1163.file/tuerschloss2.jpg","max":"https://www.zeiss.it/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1920.960.0,203,1920,1163.file/tuerschloss2.jpg"})
Soluzione

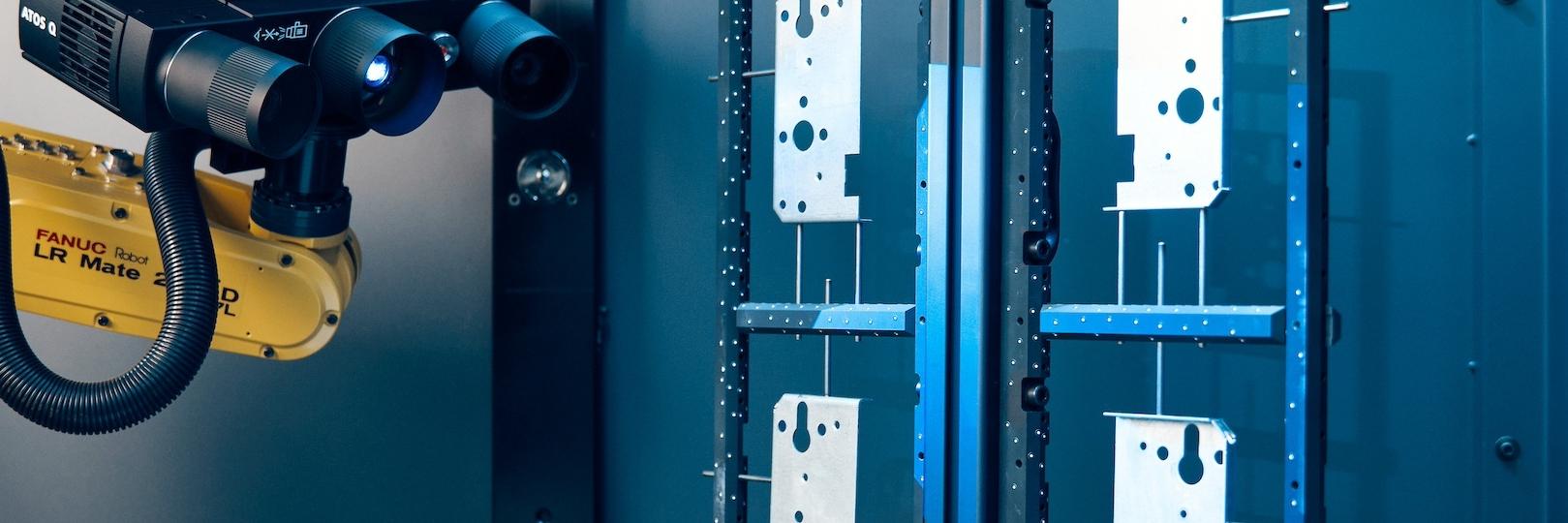

La soluzione automatizzata di ZEISS, ATOS ScanBox, consente un’analisi rapida ed efficiente di parti in lamiera. Il sistema di misura non a contatto può essere utilizzato nel processo di stampaggio lamiera per assicurare una costante garanzia di qualità, dal collaudo delle attrezzature e dall’analisi iniziale dei componenti, fino al controllo della produzione durante la produzione in serie e l’analisi dell’assemblaggio. ScanBox viene fornito con la cella di misura virtuale (VMR) di ZEISS INSPECT per una facile pianificazione e controllo delle misure. Dopo la configurazione nella VMR, lo ScanBox esegue automaticamente il programma di misurazione e analisi. Anche le parti in lamiera rifrangente e i dettagli appuntiti, come i tagli laser e lo schema delle forature, possono essere misurati con precisione. I risultati di misurazione forniscono subito un feedback sulla qualità dei componenti. Gli operatori possono vedere la deviazione complessiva della forma e guardare la deviazione di rifilatura. Il software parametrico ZEISS INSPECT supporta anche la scansione di più parti e l’analisi delle tendenze durante la produzione.
